Product Description

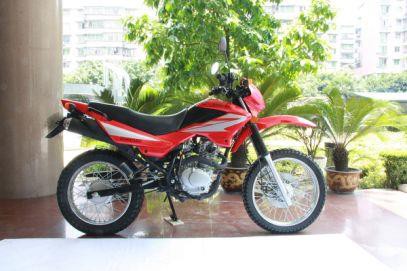

The 150CC CG Single-cylinder Air -cooled 4-stroke Motorcycle uses the advanced motor, which adopts anti-fatigue six-column six-plate clutch, the crankshaft uses high-quality special needle roller, widens and thickens the connecting rod to make the connecting rod bear greater torque, and the transmission mechanism adopts a special transmission ratio mechanism to increase the output torque. The design of the handles and seats conforms to the concept of ergonomics, which gives rider a more comfortable riding experience. What’s more, the 150CC CG Single-cylinder Air -cooled 4-stroke Motorcycle has the advantages of long service life, advanced technology, delicate design, compact structure, easy maintenance, energy saving as well as high cost effective. It receives a good reputation among clients due to high performance and high cost effective.
YD150GY-16 | |
|
|
| Technical | |
| Engine | |
| Engine Type: | 162FMJ, 4-Stroke, Single cylinder, Air Cooled |
| Displacement (ml): | 149.5ml |
| Bore X Stroke (mm): | 62x49.5 |
| Compression Ratio: | 9.2:1 |
| Max. Power (kw/r/min) | 8.5/8000 |
| Max. Torque (N.m/r/min): | 10/7500 |
| Max. Speed (Km/h): | ≥90 |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front shock absorber: | hydraulic pressure and spring |
| Rear shock absorber: | hydraulic pressure and spring |
| Chassis structure: | Steel tube and steel plate,rhombic structure |
| Rear fork: | steel |
| Front Brake: | Disk Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 90/90-19 |
| Rear Tire: | 110/90-17 |
| Muffler: | Steel |
| Wheel rim | spoke wheel rim |
| Battery: | 12V7Ah |
| DIMENSIONS | |
| L X W X H (mm): | 2100×785×1170mm |
| Seat Height (mm): | 880mm |
| Wheelbase (mm): | 1390mm |
| Min. Ground Clearance (mm): | 320mm |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 2 Persons |
| Dry. Weigth (kg): | 121 |
| Fuel Tank Capacity (L): | 12 |
| Others | |
| Packing Size (mm): | 1790mmx460mmx860mm |
| Packing Weight (kg): | 142 |
| Container Loading (40HQ): | 96units |
| ZONGSHENCG 150cc engine, Single cylinder, air-cooled, Four-stroke, Spoke, Front disc and Rear Drum | |
