Products Introduction

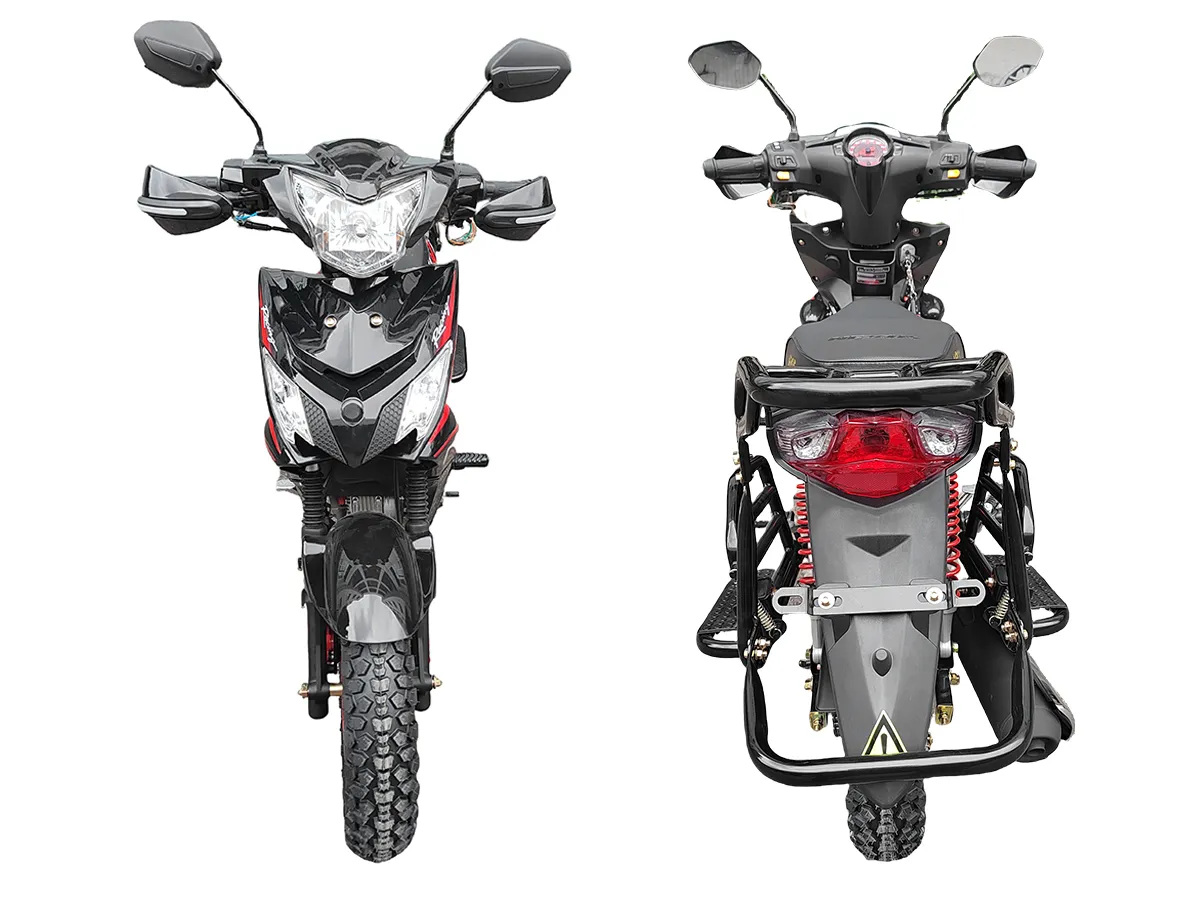

The LD3N is a 125cc four-stroke underbone motorcycle designed for urban-rural logistics and commercial cargo transport.
Products Features
1. Wet-Grip Anti-Slip
Front disc/rear drum brakes with 110/90-13 wide tires provide strong grip on rainy muddy roads, preventing braking skids.
2. Quick Cargo Mounting
Standard frame mounting holes support quick installation of courier boxes or racks for flexible commercial use.
3. Efficient Power
Powered by a 125cc single-cylinder, air-cooled, four-stroke engine-light off the line with immediate throttle response.
Technical Specification
|
Model |
CUB-LD2 |
|
|
125CC |
110CC |
|
|
Engine Type |
119.9ml,Four Stroke,Single cylinder,air cooled |
107ml,Four Stroke,Single cylinder,air cooled |
|
Bore*Stroke |
52.4*55.6mm |
52.4*49.5 |
|
Max Power |
6.5kw/7500r/min |
4.7kW/8000r/min |
|
Max Torque |
9.0N.m/5500r/min |
6.7N.m/8000r/min |
|
Transmission |
4 gears |
4 gears |
|
Max Speed |
80kh/h |
80kh/h |
|
Pressure Ratio |
9.2:1 |
9.2:1 |
|
Lubrication |
Pressure,Splash |
Pressure,Splash |
|
Clutch Type |
Multiplate wet clutch |
Multiplate wet clutch |
|
Ignition |
C.D.I |
C.D.I |
|
Starting System |
Kick / Electric |
Kick / Electric |
|
Carburecter |
PZ20 |
PZ19 |
|
|
|
|
|
L×W×H (mm): |
1990×680×1070mm |
1990×680×1070mm |
|
Seat Hight (mm): |
780mm |
780mm |
|
Wheelbase (mm): |
1260mm |
1260mm |
|
Unloading Weight(kg): |
75kg |
75kg |
|
Max loading capacity(kg): |
150kg |
150kg |
|
Fuel tank capacity(L): |
3.5L |
3.5L |
|
Tyre: |
110/90-13 / 110/90-13 |
110/90-13 / 110/90-13 |
|
Brake (Front/Rear): |
Disc / Drum |
Disc / Drum |
|
Gasoline(#): |
90# up |
90# up |
|
Ground Clearance: |
153mm |
153mm |
|
QTY/CNT |
105PCS/SKD/40HQ; 126PCS/DOUBLE PACKAGE/SKD/40HQ |
|
applications
Courier Shuttle Transport
Bulk parcel transport between urban and rural courier hubs, handling mixed road conditions.
Market Fresh Delivery
Short-haul vegetable/fruit delivery in rural markets, adapting to narrow lane stops.
Industrial Material Shuttle
Heavy-duty transfer of molds and building materials within industrial parks, with strong load capacity.
Farm Supply Transport
Pesticide and fertilizer transport in fields, handling humid unpaved roads.
FAQ
Q1: What is the minimum order quantity?
A 40HQ container holds 105 SKD units, supporting mixed shipments.
Q2: Do you support customized production?
Yes, OEM/ODM services are available for custom colors, decals, and configurations.
Q3: Which emission standards does it meet?
Standard Euro II, upgradable to Euro III.
Q4: What is the lead time?
Shipment within 25-30 days after order confirmation.
Q5: What is the warranty policy?
6 months for the whole vehicle, 1 year for core components.
